In-Line Router Table For The SawStop Industrial Cabinet Saw

Description

Installed between the fence rails of a SawStop industrial cabinet saw, this retrofit kit is designed to let your saw’s table serve double duty as a full-function support for both sawing and routing operations.

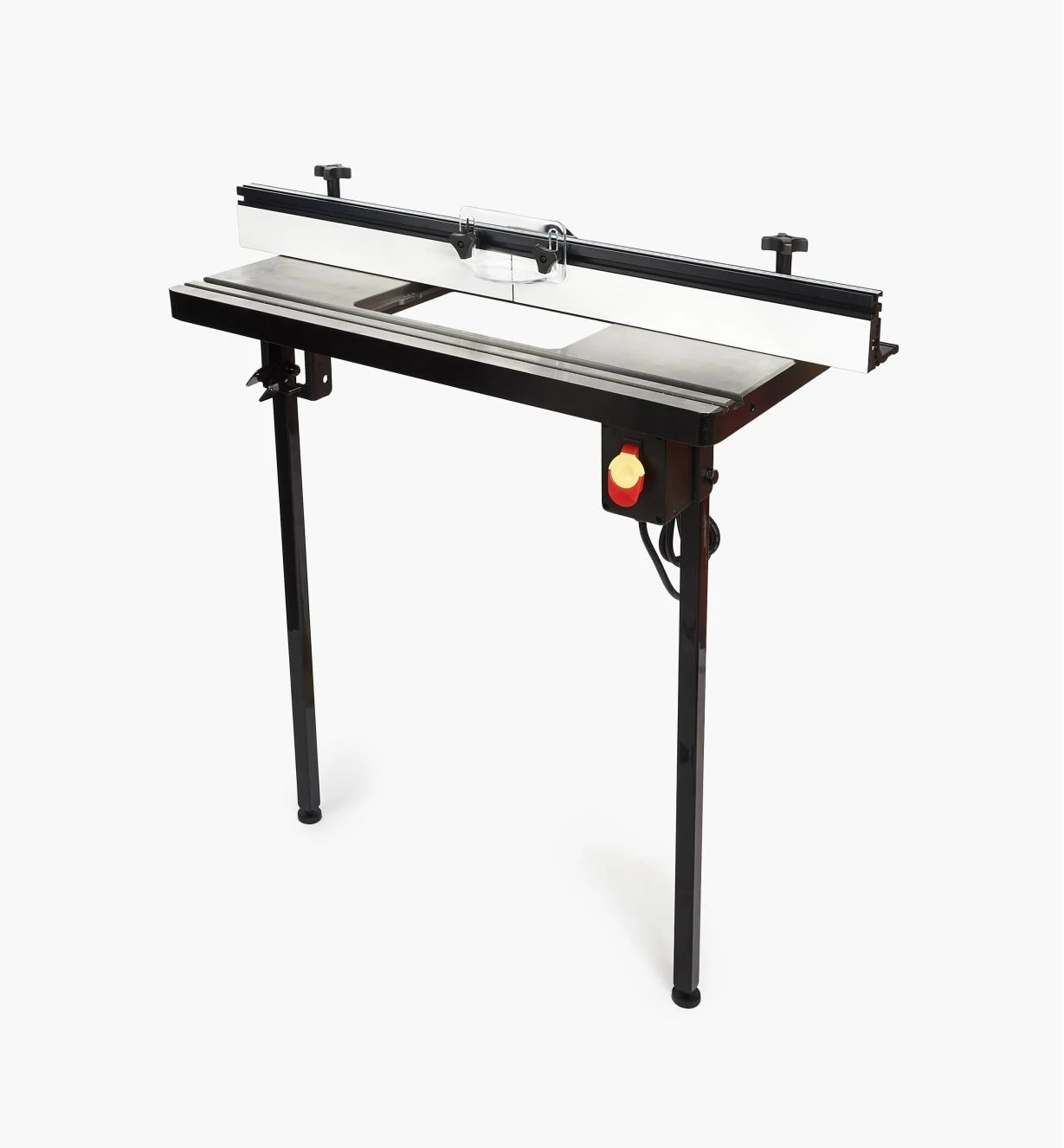

The basic assembly consists of a heavy-duty 30″ × 16″ cast-iron router table with a miter slot and a T-slot, a dedicated router fence, two sturdy support legs and an external power switch for your router.

The 32″ aluminum router fence has two adjustable faces, a 2 1/4″ dust port and a router bit safety guard. Most users install the table to the right of the saw blade, but it can also be installed on the left (optional filler table available separately).

The table accepts any router lift compatible with a standard 11 3/4″ × 9 1/4″ insert plate, including SawStop’s robust chain-driven lift. To mount a router without a lift, a standard 11 3/4″ × 9 1/4″ insert plate is required.

Is your Industrial Cabinet Saw Router-Table Ready?

SawStop modified the rails of the T-Glide fence to accommodate the in-line router table. If you purchased your industrial cabinet saw from Lee Valley after January 1, 2018, your saw is fully compatible. If you purchased your industrial cabinet saw from us before that date, or from another retailer, you may need replacement rails.
